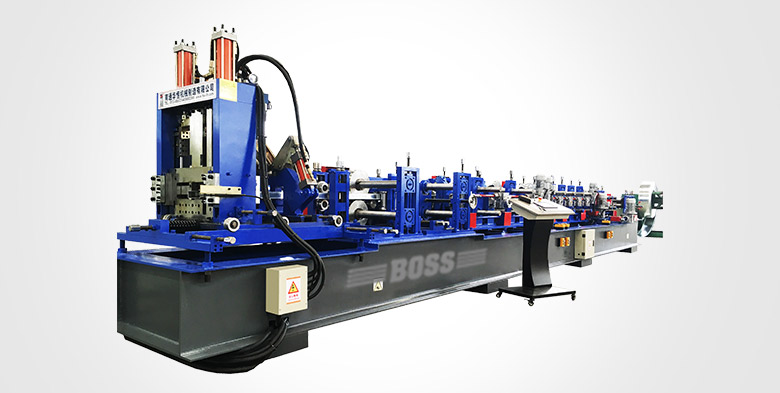

Automatic C Purlin Forming Machine

Main Technical Parameters

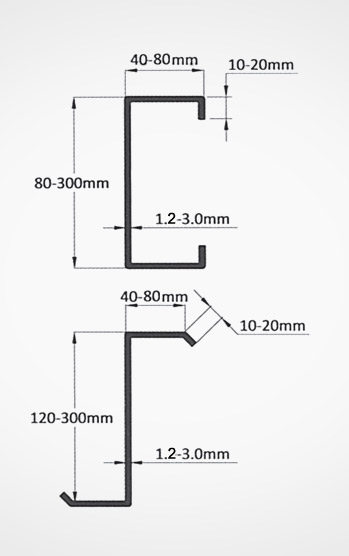

Thickness of Material Three-Phase Asynchronous Motor : 1.2 - 3.0 mm
Hydraulic Motor : 1.2~3.0 mm
Main Motor Power Three-Phase Asynchronous Motor : 15kw
Hydraulic Motor : 22kw
Control System PLC Control Panel
Shaft Material 40Cr ( 80)
Roller Material Cr12
Forming Speed Three-Phase Asynchronous Motor : 10 - 15 m/min
Hydraulic Motor : 16 - 25 m/min
Cutting Blade Material CR12Mov
Roller Stations 18 Stations
Size of Machine (L*W*H) 10m*1.35m*1.75m
