Double Layer Forming Machine

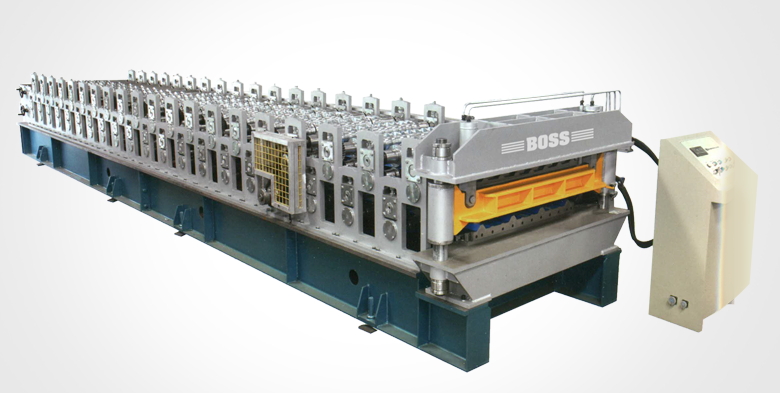

Double Layer Roll Forming Machine

Machine's Components

This roll forming machine consists of uncoiler, coil sheet guiding device, double layer forming system, cutting device, Hydraulic station, PLC control system and support table.

Main Technical Parameters

Suitable Material Color Steel Sheet or Galvanized Steel Sheet
Thickness of raw material 0.4-0.7mm
Yeild Strength of Material 235Mpa-345Mpa or 500-550Mpa
Forming Speed About 20-25m/min
Power Requirement Main Motor Power : 7.5 Kw (Depen on final design)
Hydraulic Station Power : 2.2Kw (Depen on final design)
Uncoiler's Loading Capacity Max. Capacity : 5000kgs (can be increased to be 10T)
Controlling system Mitsubishi PLC & converter
Size of machine About 20m x 1.5m x 1.8m (depend on final design)
