Floor Deck Roll Forming Machine

Floor Deck Roll Forming Machine

Product Features

The metal deck produced by Floor Deck Roll Forming Machine has high strength with big wave length. It adheres well to concrete. used on high building, it is not only saves steel mold plate, but also reduces the weight of storey. With the same bearing capacity, it economized steel and cuts down investment accordingly.

Machine's Components

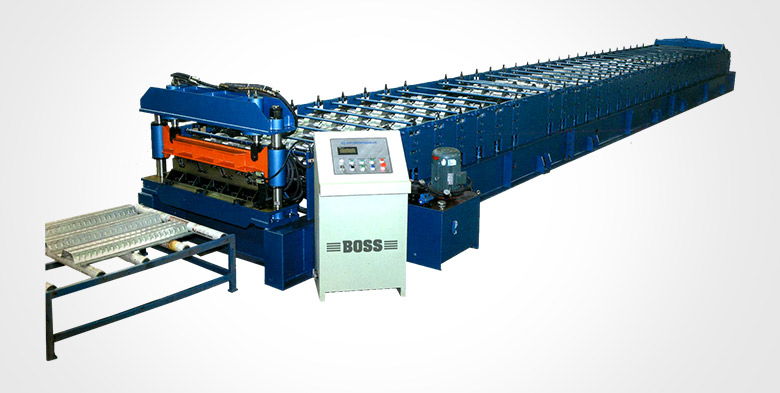

Floor Deck Roll Forming Machine consists of uncoiler, coil sheet guiding device, main roll forming syatem, cutting device, hydraulic station, PLC control system and support table.

Deck Forming Machine

Main Technical Parameters

Suitable Material GColor steel sheet or galvanized steel sheet
Thickness of raw material 0.8-1.2mm
Forming speed About 15-18m/min
Power Requirement Main Motor Power: 11x2 Kw(Depend on final design)
Hydraulic Station Power: 5.5Kw (Depend on final design)
Uncoiler's Loading Capacity Max. Capacity : 5000kgs (can be increased to be 10T)
Controlling system Mitsubishi PLC & Converter
Voltage 380v 3 phase 50Hz or as per customer;s requirement.
Machine's Size About 28m x 1.5m x1.6m (Depend on final design)
