EPS Sandwich Panel Machine

Eps Sandwich Panel Machine

Eps Sandwich Wall Panel Machine

Brief Introduction

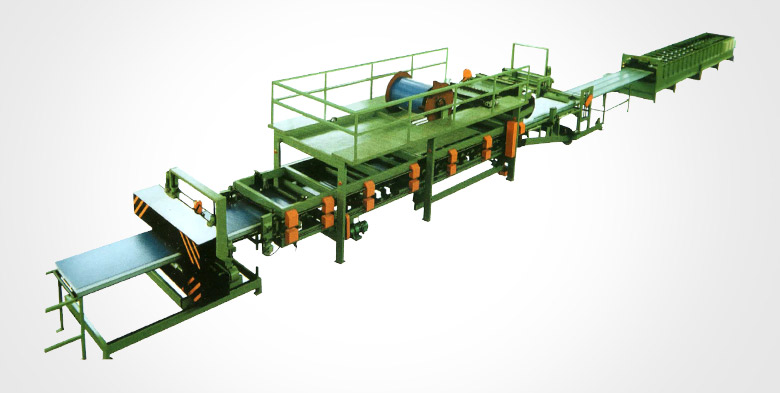

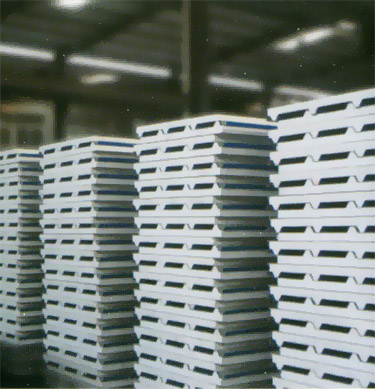

EPS sandwich panel machine could make the polystyrene core sandwich panel. This sandwich panel product line adopts PLC and touch screen controlling system. It could make both roof and wall sandwich panel with core of polystyrene foam material. Due to its simple operation, EPS sandwich panel forming machine is widely used in the construction of steel polystyrene enclosures, warehouse, workshop, cold storages, and mobile buildings. In order to satisfy various customer requirements, we design and manufacture EPS sandwich panel lines in different specs, models and configurations.

Main Components

EPS sandwich panel machine mainly consists of uncoiler, roll forming machine, laminating system, cutting device, electric control system, and pneumatic system.

Technical Specifications

EPS Sandwich Panel Spec

Panel Thickness Mini Thickness : 50mm (wall panel)
Max. Thickness : 200mm (exclude corrugated sandwich panel)

Steel Sheet Spec

Thickness 0.4-0.7mm color steel sheet
Width 1250mm (we can design according to buyer's requirement)
Max. Coil Weight 5 tons
Inner Dia. of Coil 508mm

Whole Line Spec

Whole Line Dimension About 3500mm x 3000mm x 3000mm
Total Weight About 20t
Working Speed About 3-5m/mm (adjustable)
The Output 1500m2-2000m2/8hour
Control Mode PLC and Converter
Total Power About 28Kw (as per final designing)
Power Required 380V/3phase/50Hz or as per customer's requirement
Air Pressure 0.7Mpa (for buyer to prepare)
Suitable Working Temperature About 25 Degree
