Roof Tile Forming Machine Series

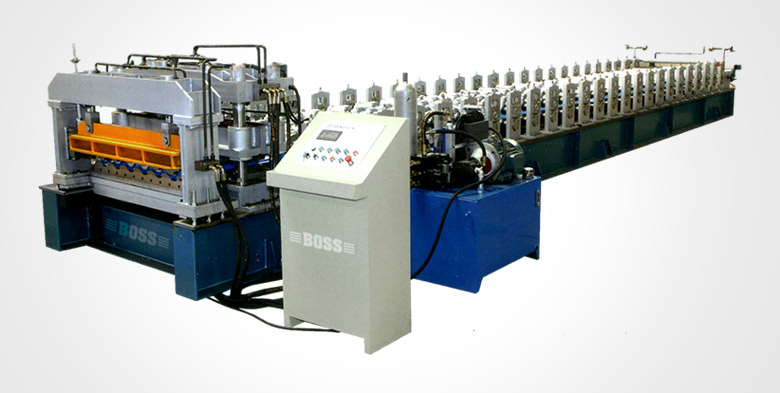

Roof Tile Forming Machine

Product Feature

The colored steel tiles produced by this machine look beautiful, elegant and nobel. They are widely used as the roof of garden, factory, hotel, exhibition center and villa, etc.

Machine's Components

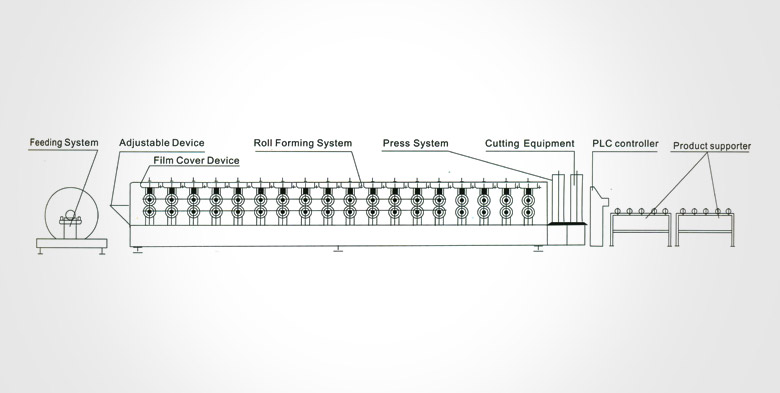

Tile forming machine consists of uncoiler, coil sheet guiding device, covering film device, main roll forming system, pressing device, cutting device, hydraulic station, PLC control system and support table.

Roof Tile Making Machine

Sheet Making Machine For Roofing

Main Technical Parameters

Suitable Material Color Steel Sheet
Thickness of raw material 0.5 mm -0.6mm
Yeild Strength of Material 235Mpa
Working Speed About 5000-6000mm/min
Step Distance Adjustable according to requirement ( ≥ 250mm)
Power Requirement Main Motor Power : 5.5 Kw (Depen on final design)
Hydraulic Station Power : 5.5Kw(Depen on final design)
Uncoiler's Loading Capacity Max. Capacity : 5000kgs (can be increased to be 10T)
Controlling system Mitsubishi PLC & converter
Size of machine About 18 m x 1.5 m x 1.4m (depend on final design)
