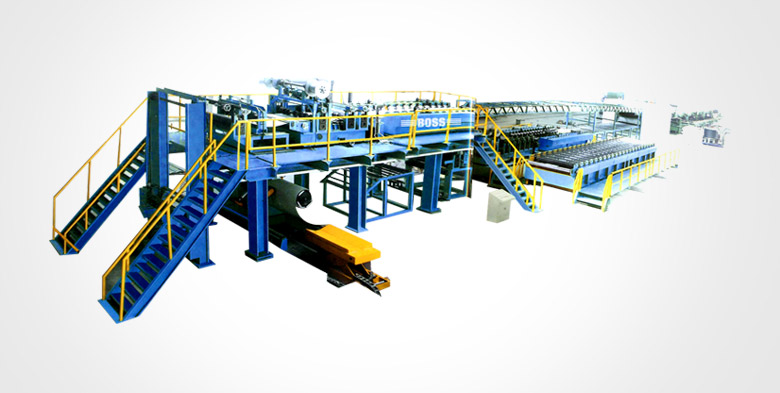

PU Sandwich Panel Forming Machine

Pu Sandwich Panel Forming Machine

Components for the PU Sandwich Panel Forming Machine

The machine includes the following parts: hydraulic uncoiler, film covering equipment, roll forming machine, preheating oven, polyurethane forming system, double belt conveyor, double belt heating device, cutting device, automatic stacker.

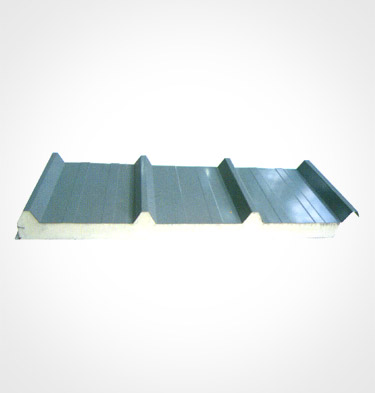

Sandwich Panel Parameters

Min. Cutting Length 3 meters
Max. Stacking Length 15m
Panel Width 1000mm
Panel Thickness Mini Thickness : 40mm (corrugated sandwich panel) / 50mm (wall panel)
Max. Thickness : 150mm (exclude corrugated sandwich panel)

Steel Panel Parameters

Thickness 0.4-0.7mm color steel sheet
Width 1250mm
Max. Coil Weight 5tons
Inner Dia. of Coil 508mm, 610mm

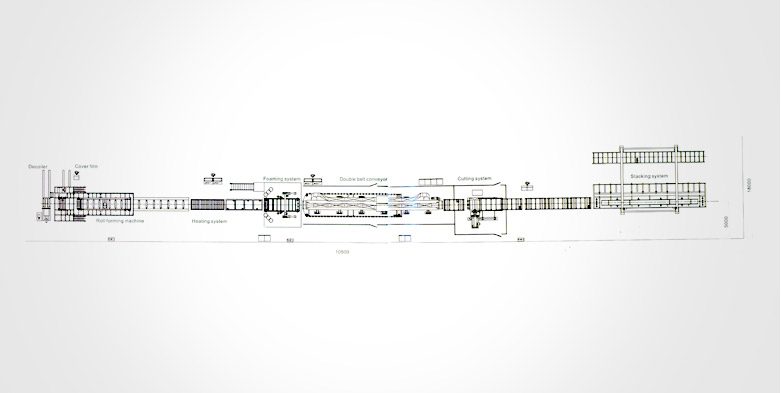

Whole Line Parameters

Working Speed Max. 7m/min (adjustable)
Total Length About 105m

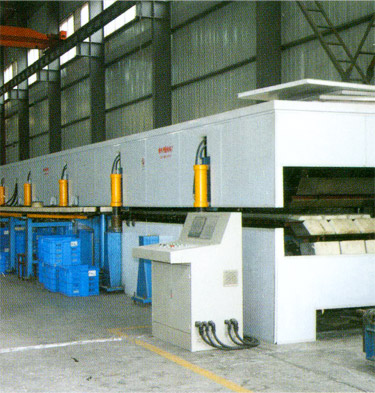

Double Belt Conveyor Length 21m
Control Mode PLC
Power Required 308V/3phase/50Hz or as per customer's requirement.
Air Pressure 0.7Mpa (for buyer to prepare)
