Hydraulic Shearing & Pressbrake Machine

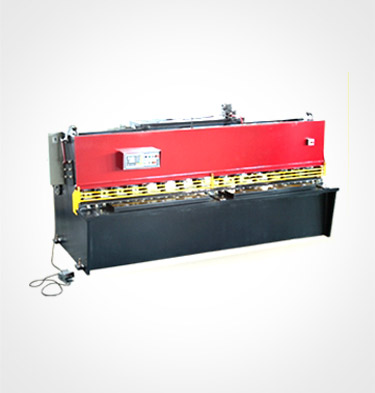

Hydraulic Shearing Machine

Hydraulic Shearing & Press Brake Machine
  • The machine employs hydraulically-driven swing beam, the steel plate welded structure, and accumulator -based pullback cylinder with steady and reliable operation.
  • Indicator-based adjustment of gap of blade is convenient and fast.
  • The machine is equipped with lighting alignment device, and uses stepless control for the stroke of up tool carrier.
  • The machine uses protection fence for safe operation.
  • Digital display device for size of back gauge and shearing times available.

Main Technical Parameters

Model Cutting Thickness  (mm) Cutting Width  (mm) Cutting Angle ( 0 ) Backgauge Range (mm) Stroke Number (times/min) Main Motor (kw) Weight (kg) Overall Dimensions (LXWXH in mm)
QC12Y-4X2500 4 2500 1°30′ 20-600 ≥16 5.5 3400 3100X1500X1550
QC12Y-4X3200 4 3200 1°30′ 20-600 ≥13 5.5 4300 3800X1550X1600
QC12Y-4X4000 4 4000 1°30′ 20-600 ≥10 5.5 6500 4600X1800X1700
QC12Y-4X6000 4 6000 1°30′ 20-800 ≥5 7.5 11000 6500 X2050X2200
QC12Y-6X2500 6 2500 1°30′ 20-600 ≥12 7.5 4800 3150X1700X1650
QC12Y-6X3200 6 3200 1°30′ 20-600 ≥11 7.5 6000 3850X1700X1650
QC12Y-6X4000 6 4000 1°30′ 20-600 ≥9 7.5 8200 4650X1850X1700
QC12Y-6X6000 6 6000 1°30′ 20-800 ≥5 11 16500 6780X2100X2300
QC12Y-8X2500 8 2500 1°30′ 20-600  ≥11 11 5500 3180X1700X1700
QC12Y-8X3200 8 3200 1°30′ 20-600 ≥8 11 7200 3880X1830X1720
QC12Y-8X4000 8 4000 1°30′ 20-600 ≥7 11 8800 4680X1900X1750
QC12Y-8X6000 8 6000 1°30′ 20-800 ≥5 18.5 18000 6880X2260X2350
QC12Y-10X2500 10 2500 2° 20-600 ≥10 15 7500 3180X1800X1700
QC12Y-10X3200 10 3200 2° 20-600 ≥8 15 8500 3880X1830X1800
QC12Y-10X4000 10 4000 2° 20-600 ≥8 15 9800 4850X1850X1900
QC12Y-10X6000 10 6000 2° 20-800 ≥6 18.5 24000 6500 X2100X2300
QC12Y-12X2500 12 2500 2° 20-800 ≥10 18.5 8600 3300X2030X2000
QC12Y-12X3200 12 3200 2° 20-800 ≥9 18.5 10700 4000X2150X2000
QC12Y-12X4000 12 4000 2° 20-800 ≥8 18.5 13000 4800X2230X2150
QC12Y-12X5000 12 5000 2° 20-1000 ≥6 18.5 16000 5900X2150X2000
QC12Y-12X6000 12 6000 2° 20-1000 ≥5 18.5 29000 6900X2600X2700
QC12Y-16X2500 16 2500 2°30′ 20-800 ≥9 18.5 11000 3310X2150X2000
QC12Y-16X3200 16 3200 2°30′ 20-800 ≥8 18.5 13800 4030X2150X2000
QC12Y-16X4000 16 4000 2°30′ 20-800 ≥8 18.5 15300 4820X2400X2200
QC12Y-16X5000 16 5000 2°30′ 20-1000 ≥6 22 20000 5900X2600X2700
QC12Y-16X6000 16 6000 2°30′ 20-1000 ≥4 22 36000 7100X2700X2600
QC12Y-20X2500 20 2500 2°30′ 20-800 ≥5 30 16000 3370X2400X2350
QC12Y-20X3200 20 3200 2°30′ 20-800 ≥5 30 18000 4190X2540X2340
QC12Y-20X4000 20 4000 2°30′ 20-800 ≥5 30 21500 4850 X2540X2400
QC12Y-25X2500 25 2500 3° 20-800 ≥5 37 19000 3450X2650X2650
QC12Y-25X3200 25 3200 3° 20-800 ≥5 37 23000 4130X2700X2800
QC12Y-30X2500 30 2500 3°30′ 20-1000 ≥4 45 23500 3550X2900X3000
QC12Y-30X3200 32 3200 3°30′ 20-1000 ≥4 45 26000 4335X3300X3280

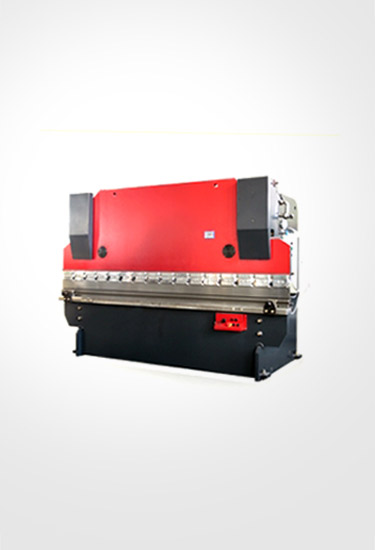

Hydraulic Pressbrake Machine

Main Features of the Hydraulic Press Brake

  • The hydraulic press brake is completely streamlined and meets EU production requirements. The body construction is completed by automated robotic welders and it undergoes a stress relief process with an annealing treatment.
  • The bending brake employs an integrated hydraulic system that is reliable and easy to maintain designed by Bosch-Rexroth in Germany.
  • Work pieces are bent with maximum precision thanks to the sheet metal bending machine's mechanical synchronous mechanism and complex compensator.
  • The stroke and distance of the metal bender's backgauge is automatically adjusted by the motor and can be adjusted by hand as well. The adjustments are displayed with digital meters.
  • Inch, single, and continuous operation modes are designed for the metal forming machine to be controlled using time relays.
  • A Safety barrier and electric interlocker are designed for the hydraulic press brake to ensure maximum operation safety.

Standard Designs for the Hydraulic Press Brake

  • The brake press is fitted with intermediate upper clamps to prevent wedging
  • Plate support arms
  • Powered adjustment of axis depth
  • Backstop
  • Light guards
  • Top and bottom tooling
  • Estun E21 NC control
  • German Bosch-Rexroth hydraulic system
  • Telemecanique/Schneider Electric components
  • Hydraulic and electrical overload protection
  • Squaring arm and front support arms
  • Inverter with ball screw and polished rod with 0.05 mm accuracy.cc

Estun E21 NC Control System for the Hydraulic Press Brake

  • Monochrome LCD box panel
  • Integral factor freely programmable
  • Automatic positioning control
  • Spindle offset allowance
  • Internal time relay
  • Stock counter
  • Backgauge position display with 0.01mm resolution

Main Technical Parameters

Model Capacity (KN) Max. Bending Length (mm) between columns (mm) Throat Depth (mm) Slide Stroke (mm) Max. Shut Height (mm) Strokes (min-1) Main Motor (kw) Weight (kg) Outline Size (LXWXH in mm)
WC67Y-30X1600 300 1600 1050 200 80 280 ≥15 4 1300 1800 x 1600 x 1750
WC67Y-40X2200 400 2200 1850 230 100 320 ≥11 5.5 2750 2400x1200x1910
WC67Y-40X2500 400 2500 2000 230 100 320 ≥11 5.5 3000 2700x1200x1910
WC67Y-63X2500 630 2500 2000 250 100 320 ≥10 5.5 4000 2700x1300x2200
WC67Y-63X3200 630 3200 2600 250 100 320 ≥10 5.5 4800 3500x1300x2200
WC67Y-80X2500 800 2500 2000 300 100 360 ≥10 7.5 4700 2700x1400x2300
WC67Y-80X3200 800 3200 2600 320 100 360 ≥8 7.5 6000 3500x1500x2300
WC67Y-100X2500 1000 2500 2000 320 120 380 ≥8 7.5 5500 2700x1600x2350
WC67Y-100X3200 1000 3200 2600 320 120 380 ≥8 7.5 6500 3500x1600x2350
WC67Y-100X4000 1000 4000 3100 320 120 380 ≥8 7.5 7000 4300x1600x2450
WC67Y-125X3200 1250 3200 2600 320 120 380 ≥8 7.5 6800 3400x1600x2350
WC67Y-125X4000 1250 3200 3100 320 120 380 ≥8 7.5 7500 4300x1600x2450
WC67Y-160X3200 1600 3200 2600 320 200 460 ≥6 11 9600 3500x1700x2470
WC67Y-160X4000 1600 4000 3100 320 200 460 ≥6 11 11000 4300x1700x2800
WC67Y-160X5000 1600 5000 3900 320 200 460 ≥6 11 15000 5500x1800x3000
WC67Y-160X6000 1600 6000 4800 320 200 460 ≥6 11 18500 6500x1900x3200
WC67Y-200X3200 2000 3200 2600 350 200 460 ≥3 15 11300 3500x1900x2800
WC67Y-200X4000 2000 4000 3200 350 200 460 ≥3 15 13000 4500x1950x2800
WC67Y-200X5000 2000 5000 3900 350 200 460 ≥3 15 18500 5500x1950x3000
WC67Y-200X6000 2000 6000 4800 350 200 460 ≥3 15 21000 6500x1950x3300
WC67Y-250X3200 2500 3200 2600 400 250 500 ≥3 18.5 13700 3500x2000x3200
WC67Y-250X4000 2500 4000 3100 400 250 500 ≥3 18.5 15000 4500x2000x3400
WC67Y-250X5000 2500 5000 3900 400 250 500 ≥3 18.5 21500 5500x2000x3400
WC67Y-250X6000 2500 6000 4800 400 250 500 ≥3 18.5 24000 6500x2000x3400
WC67Y-300X4000 3000 4000 3100 400 250 530 ≥3 22 21000 4500x2000x3450
WC67Y-300X5000 3000 5000 4000 400 250 530 ≥3 22 22000 5500x2000x3450
WC67Y-300X6000 3000 6000 4800 400 250 530 ≥3 22 29000 6500x2000x3550
WC67Y-400X4000 4000 4000 3100 400 250 600 ≥2.5 30 28000 4500x2180x3400
WC67Y-400X5000 4000 5000 3900 400 250 600 ≥2.5 30 30000 5500X2180X3900
WC67Y-400X6000 4000 6000 4800 400 250 600 ≥2.5 30 34000 6500x2180x3900
WC67Y-500X4000 5000 4000 3100 400 320 630 ≥2.5 37 32700 4500x2700x3500
WC67Y-500X5000 5000 5000 3900 400 320 630 ≥2.5 37 39000 5500X2700X3700
WC67Y-500X6000 5000 6000 4800 400 320 630 ≥2.5 37 47500 6500x2700x5000
